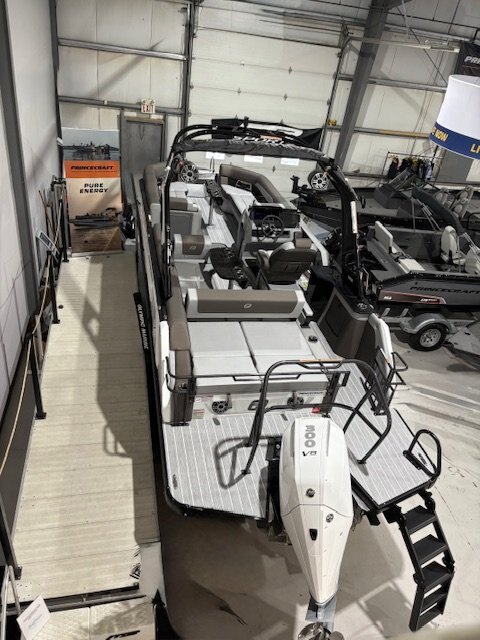

Key Specifications — 2026 Princecraft Vogue 25 RL Sport

General / Construction

• Length overall: 7.9 m (25′-11″)

• Deck length: 7.8 m (25′-6″)

• Beam: 2.6 m (8′-6″)

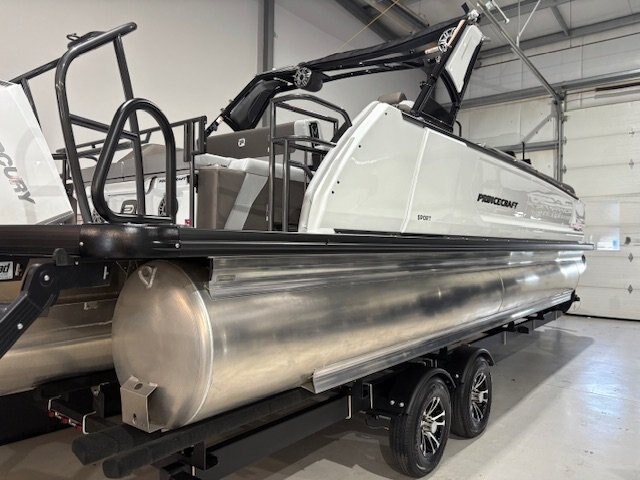

• Pontoon diameter: 0.64 m (25″)

• Pontoon material: 5052-H36 marine-grade aluminum alloy

• Cross-channels: 2 ½″ extruded Z-aluminum

• Aluminum full-length pontoon keels & skirting

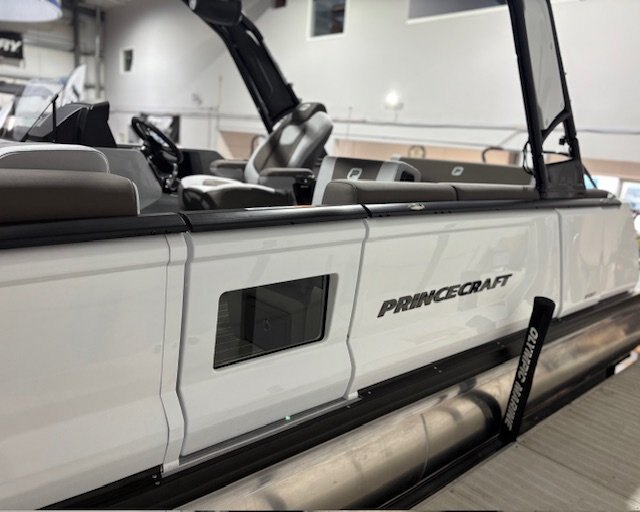

• Thermoformed composite side panels (for this model)

Weight & Capacity

• Approximate dry weight: 1,712 kg (3,774 lb)

• Built-in fuel capacity: 185 L (49 US gal)

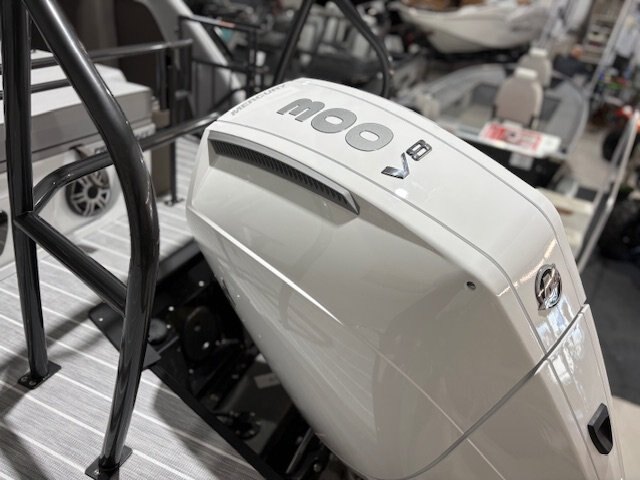

• Maximum horsepower: 300 HP Mercury Marine

• Maximum weight capacity: 1,174 kg (2,589 lb) for the 25 RL.

• Maximum person capacity: 11 persons (per Canadian spec for 25 RL)

Helm / Controls

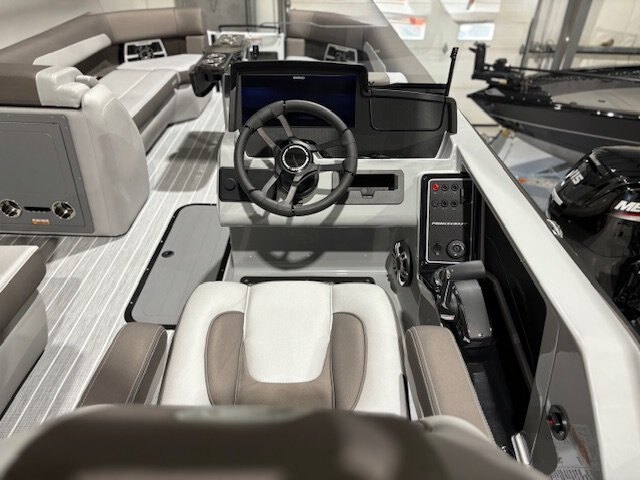

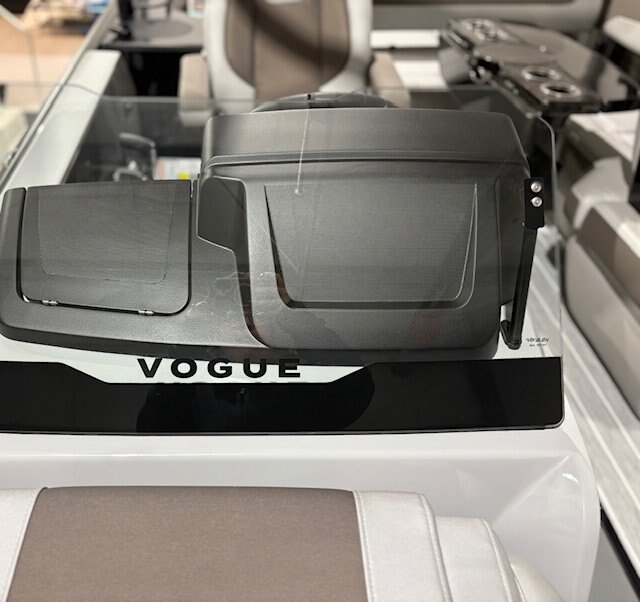

• Automotive-style raised fiberglass helm

• Steering: SeaStar® hydraulic steering

• Sport tilt steering mechanism (for this trim)

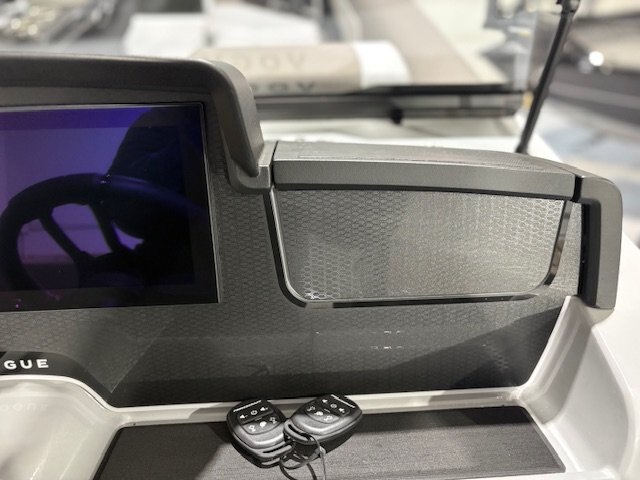

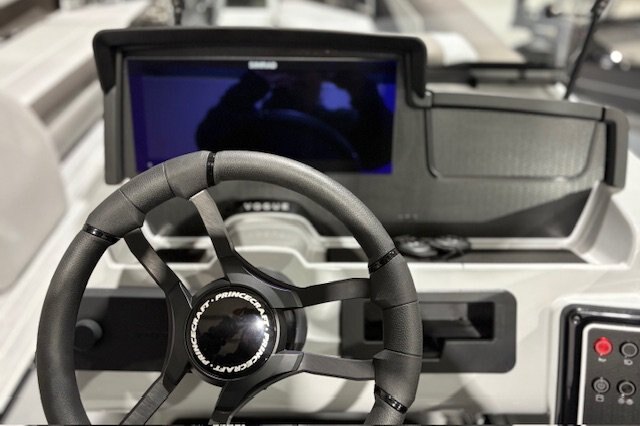

• Instrumentation: Simrad® NSX9 touchscreen multifunction display (GPS + sonar + instruments)

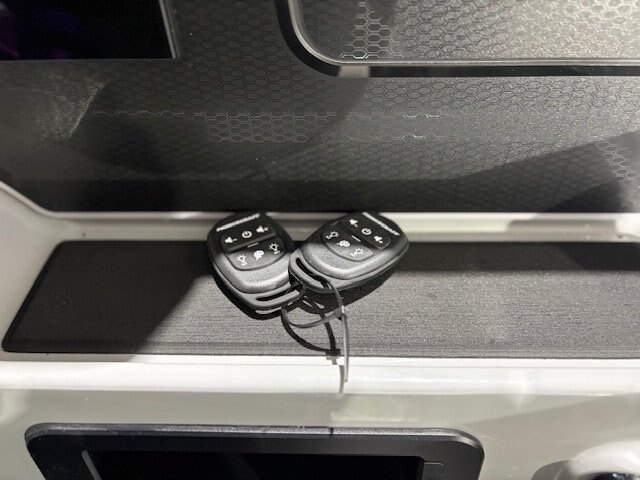

• Digital switching for lighting, radio, horn, LEDs

Comfort / Furniture / Layout

• Ultra-plush upholstery

• Rotocast bases and backs

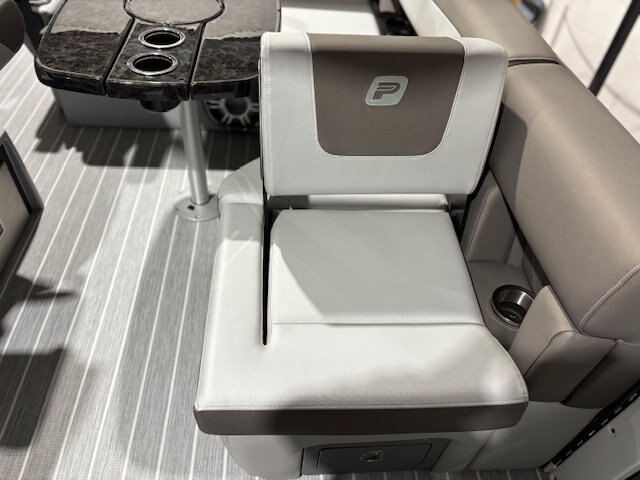

• Reclining captain’s chair with slide & swivel base

• Sport Edition features: textured vinyl upholstery + LED lighting on floor, bimini top, pontoon logs, speakers, fixed cup holders

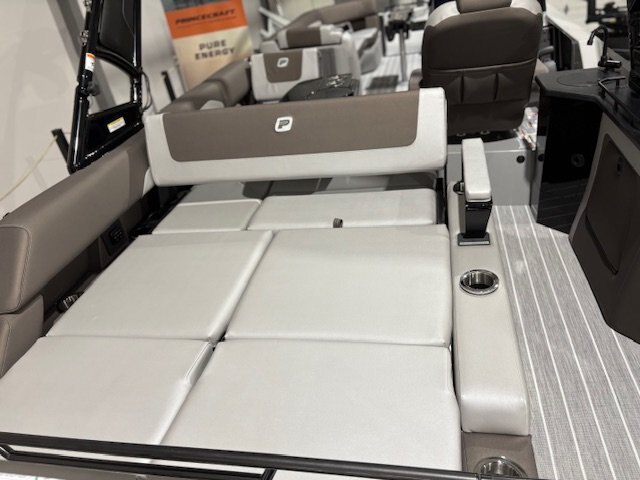

• RL (rear-lounge) layout: multi-position seat module, privacy / dressing room, stainless steel safety railing

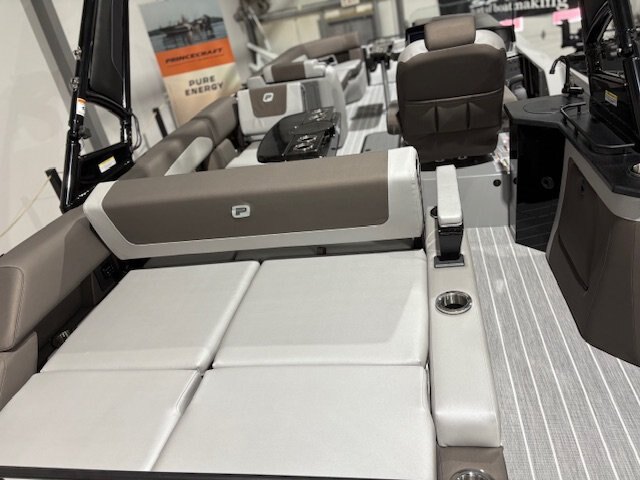

• 2 chaise lounges with under-lounger storage

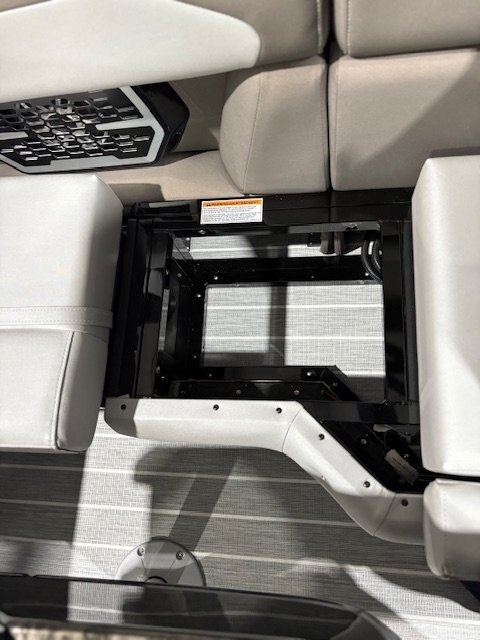

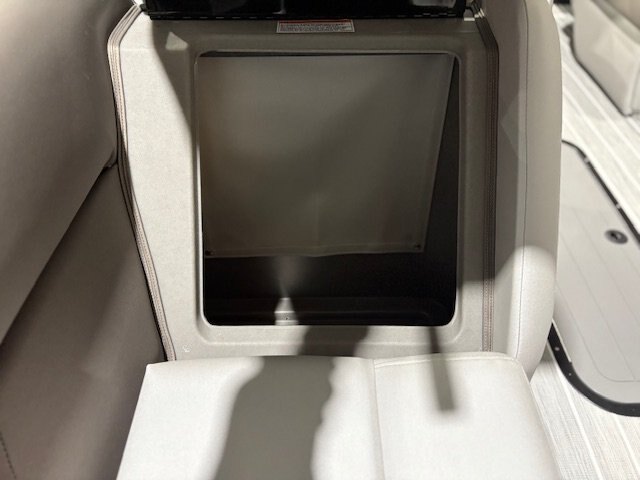

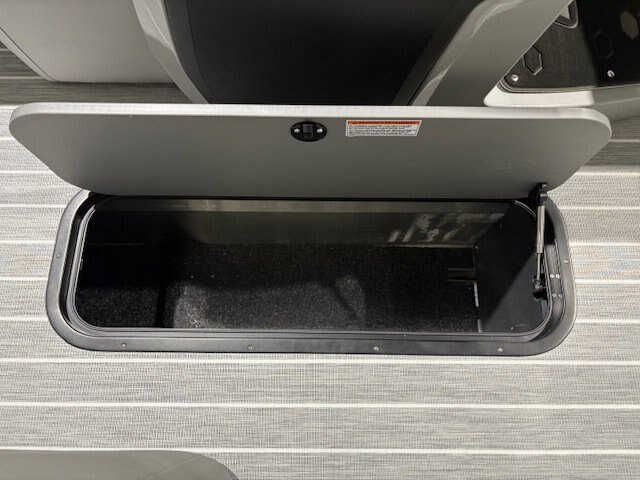

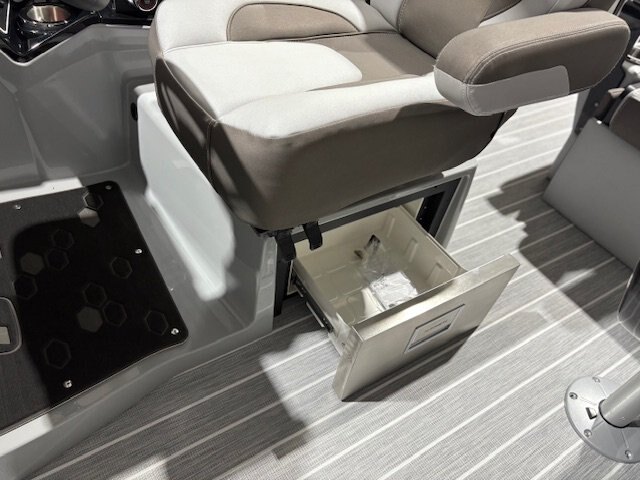

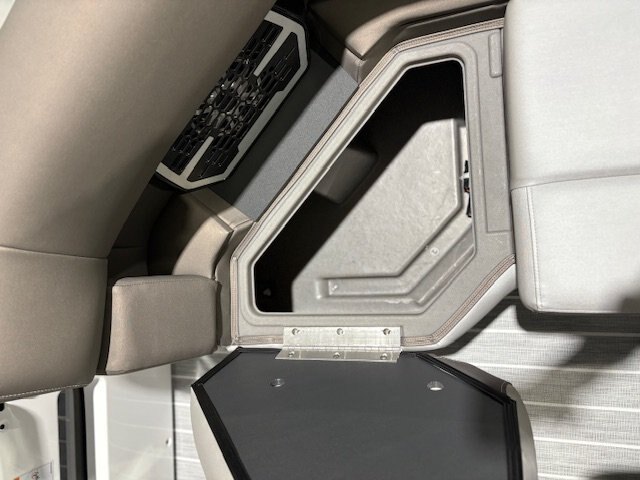

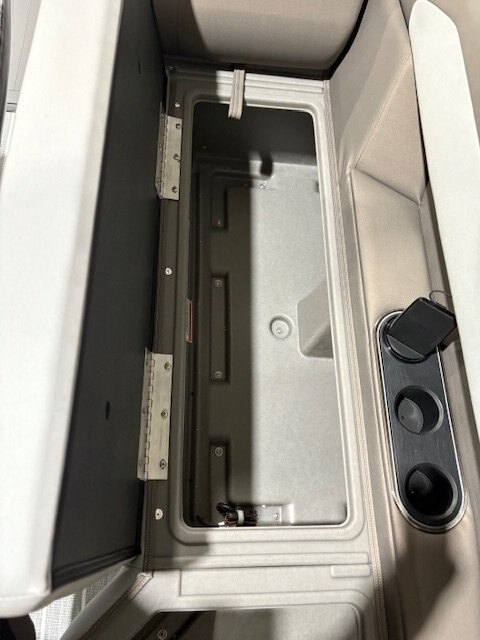

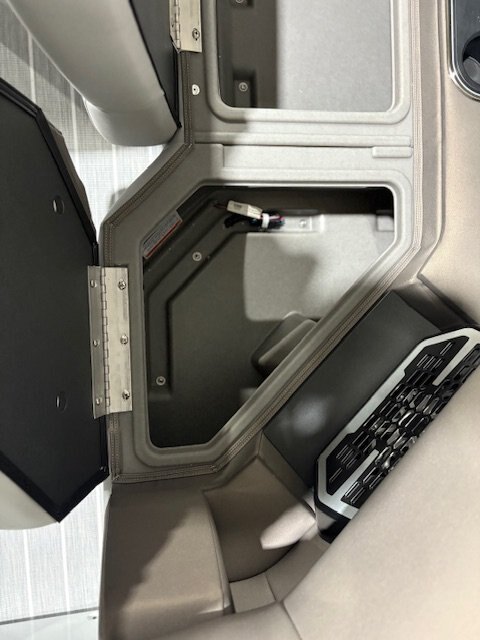

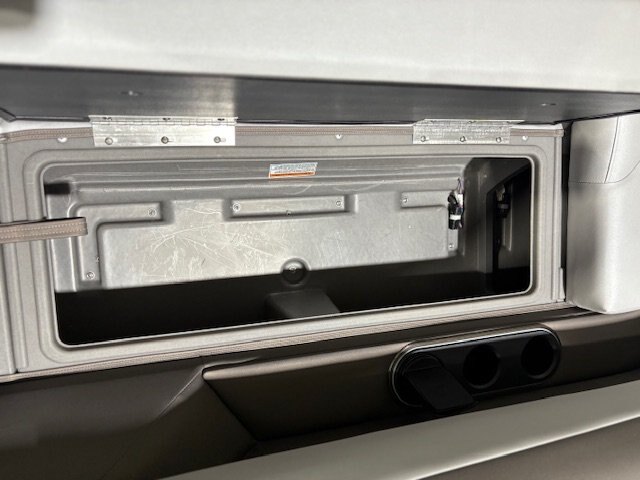

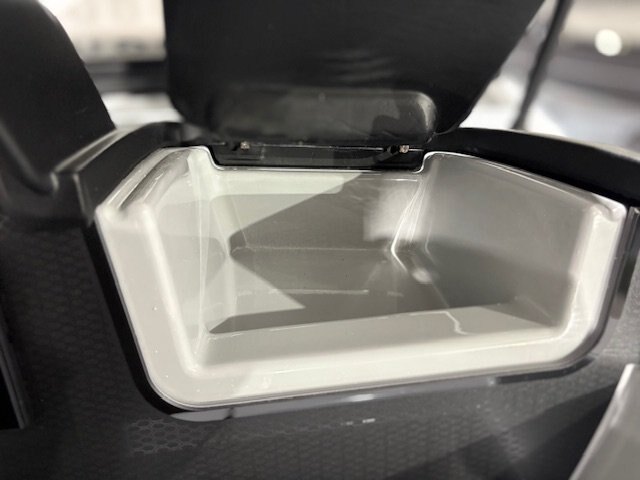

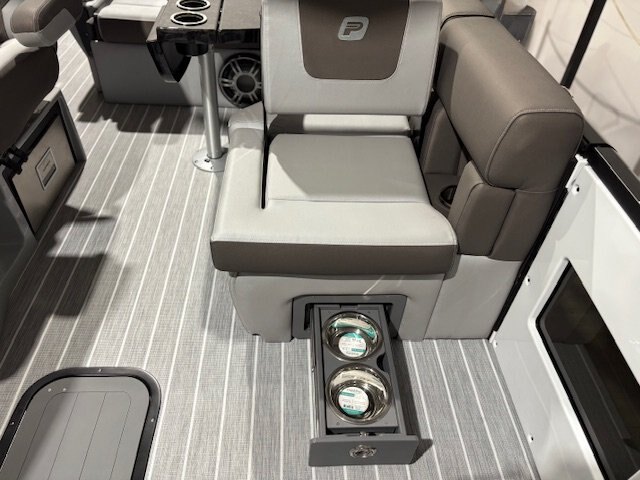

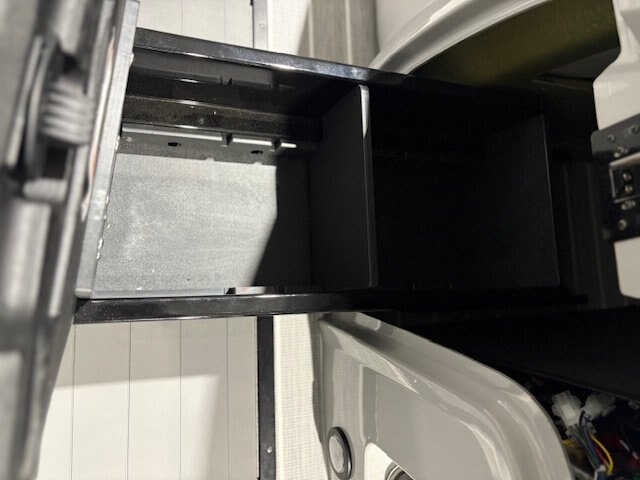

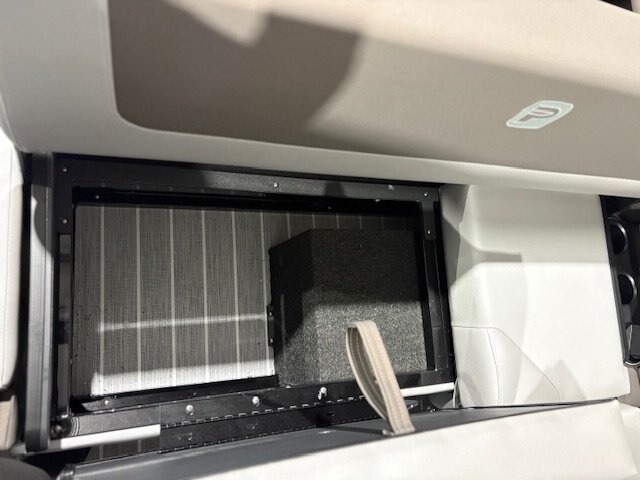

• Storage under all seating modules, plus a drawer under the driver seat and a drawer + built-in dog feeder under the passenger seat

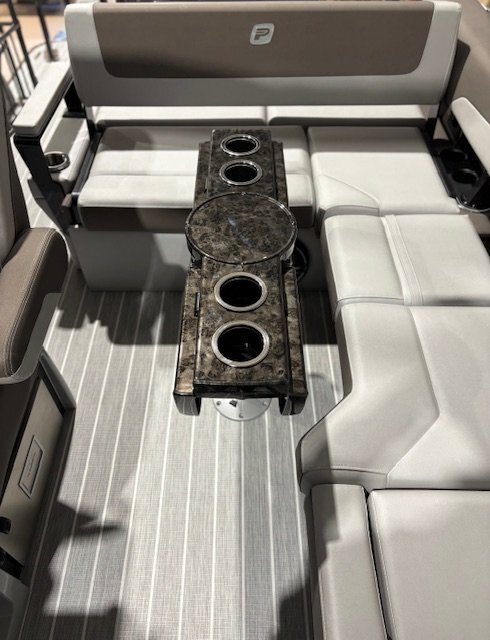

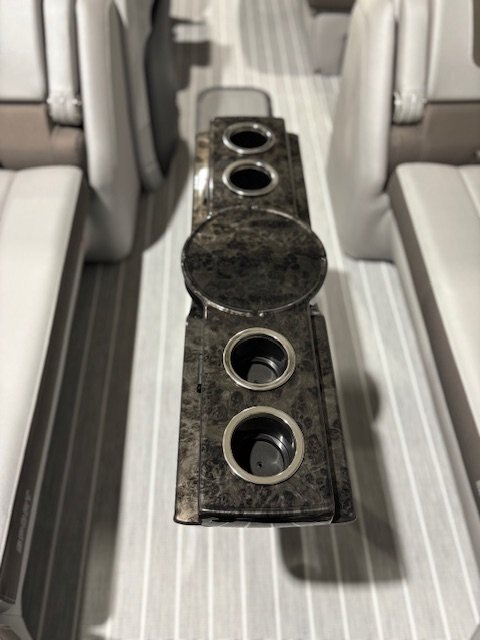

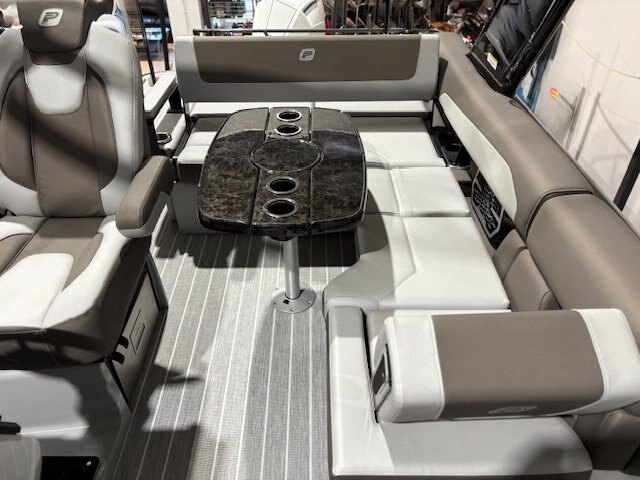

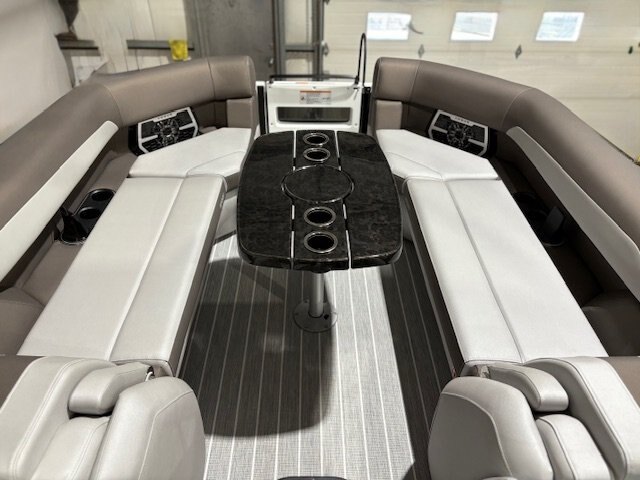

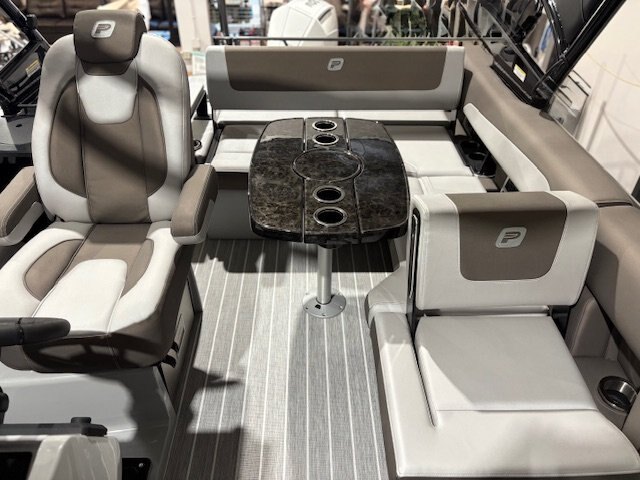

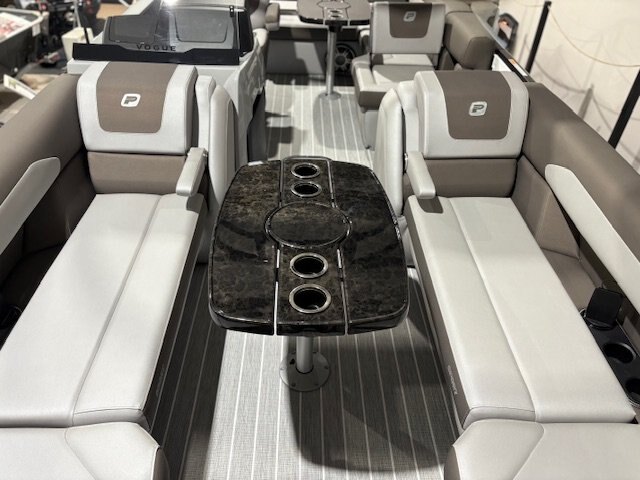

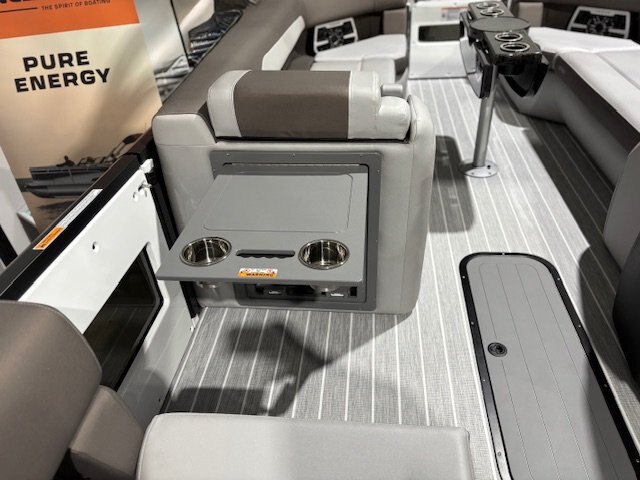

• Tablet / snack table — black folding pedestal-mount, integrated cup holders

Tops / Ladder

• Bimini top: Black & Electric

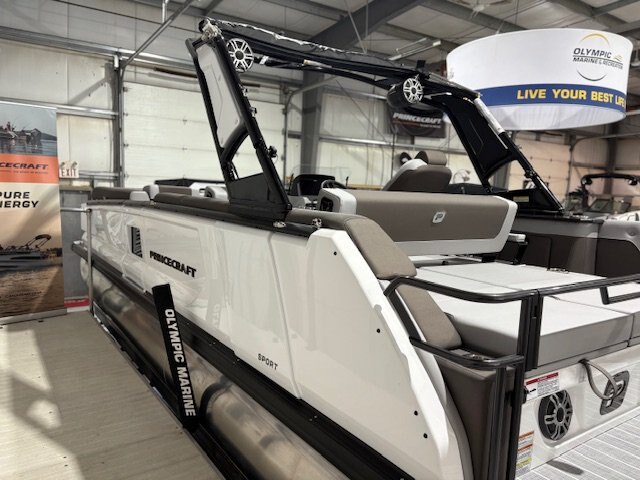

• Wakeboard Tower: Black

• Snap fasteners installed for camper enclosure or protective cover

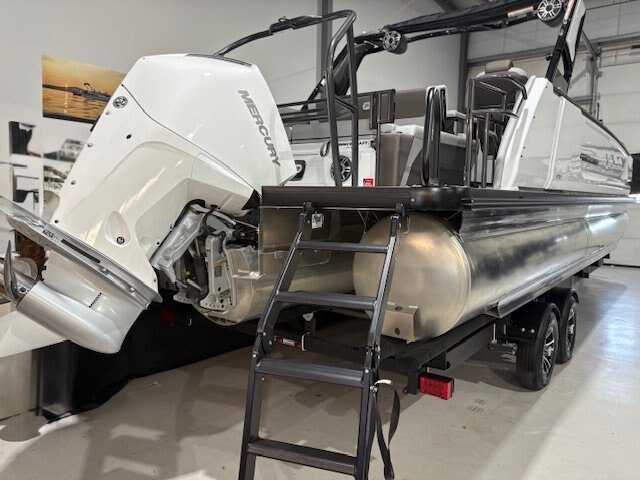

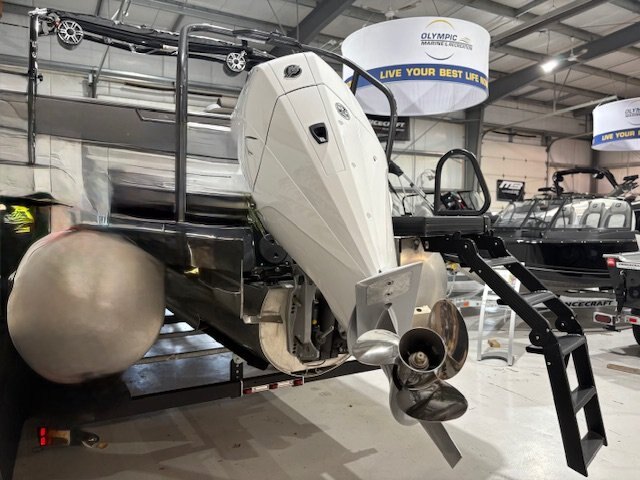

• Boarding ladder: Retractable “Lilypad” easy-step design

Lighting / Safety / Extras

• RGBW LED ambient lighting inside (mood lighting)

• LED docking lights with ignition sequence

• LED “Vogue signature” lighted logo on the bow section

• Stainless steel bow eye, recessed cleats, walk-thru gates (bow and stern), port-side gate

• Preinstalled fender hangers (3 per side) + clips

• Transducer mounting brackets for fish-finder / sonar

Entertainment / Power

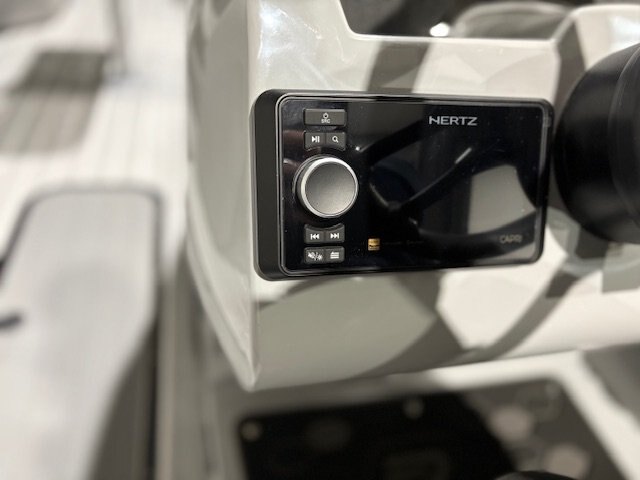

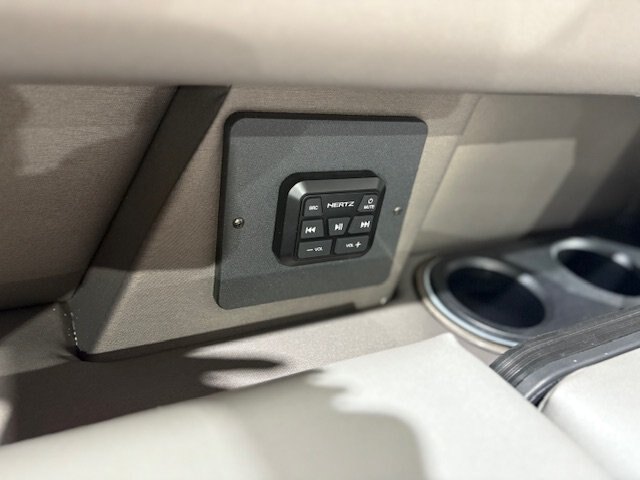

• Sport Edition stereo: AM/FM/Bluetooth Hertz HMR50 stereo at the helm

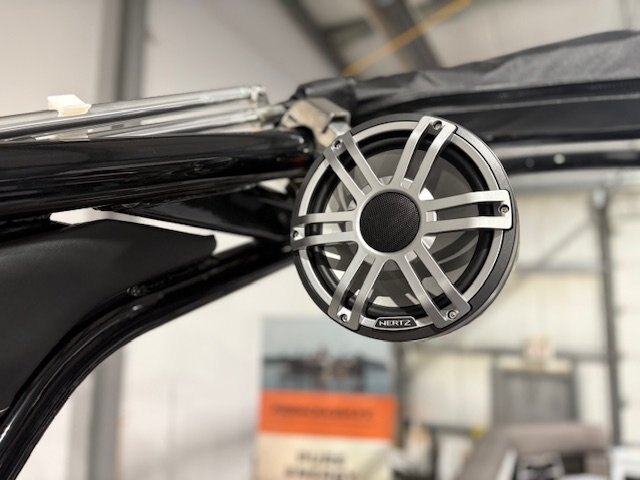

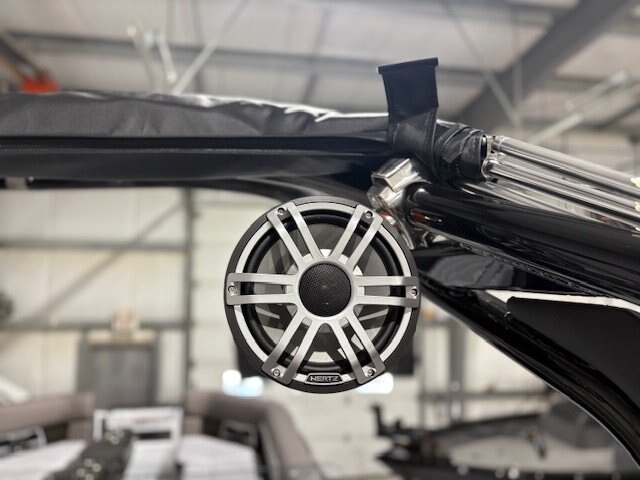

• 6 waterproof speakers

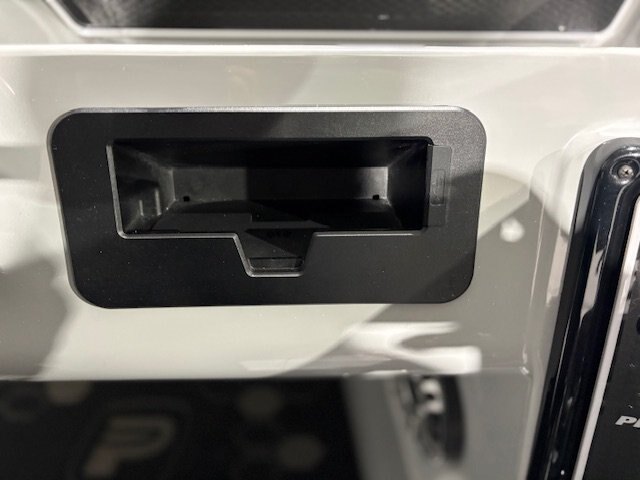

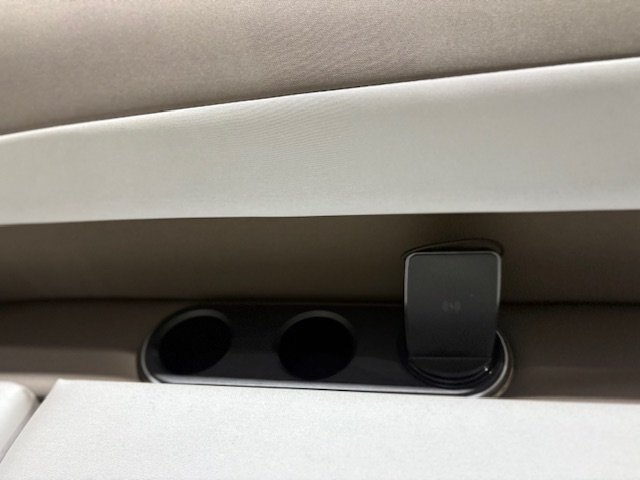

• Wireless smartphone charger integrated into console

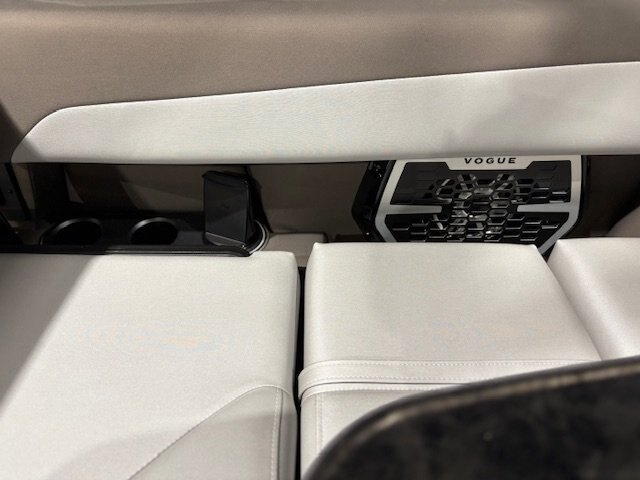

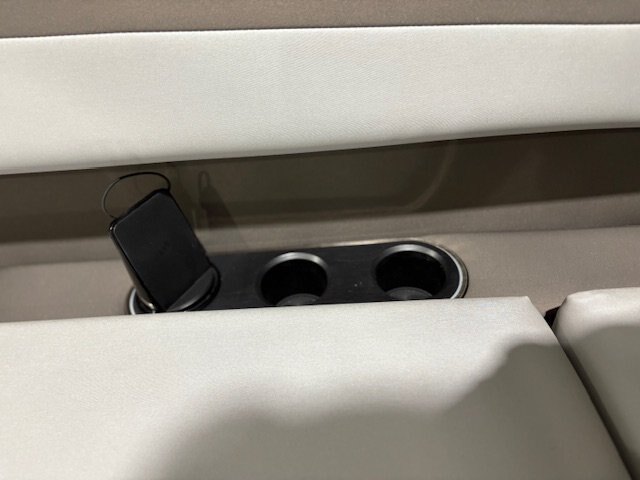

• Cup holders in seats, with integrated USB-C ports & wireless charging built into upholstery

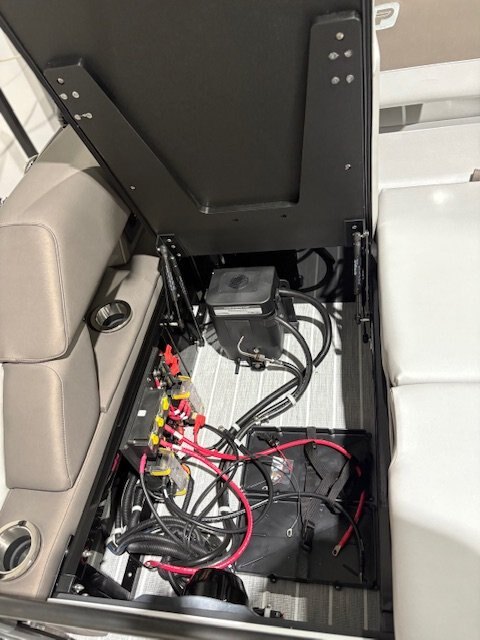

• Battery box & remote battery switch for shutting down electric system

Other Features / Options

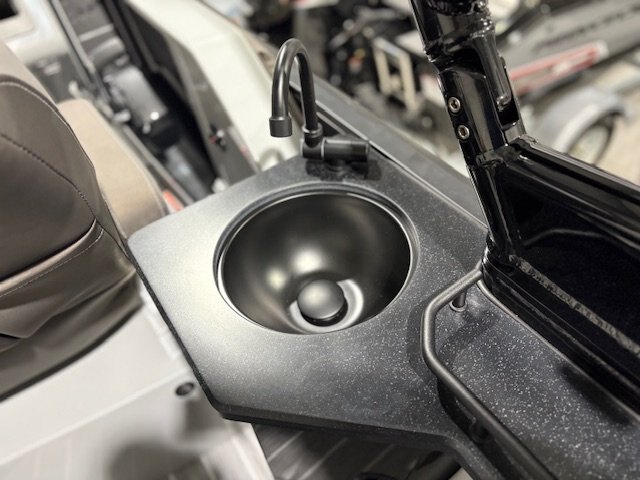

• Optional rear sink module (with storage + freshwater tank)

• Optional wakeboard tower (manual or electric) + bimini top

• Stainless steel water-ski tow bar (black finish)

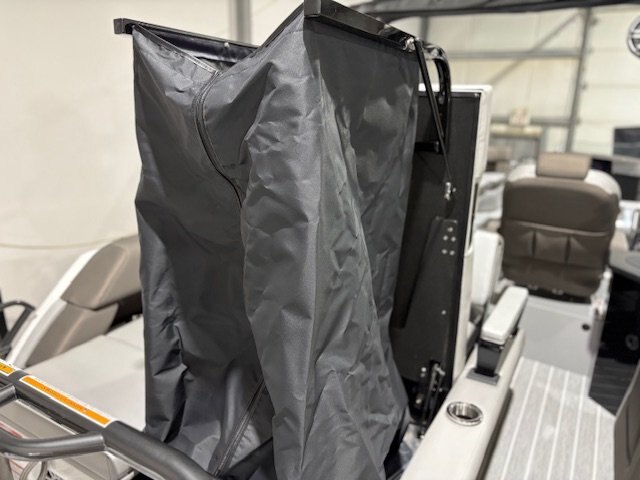

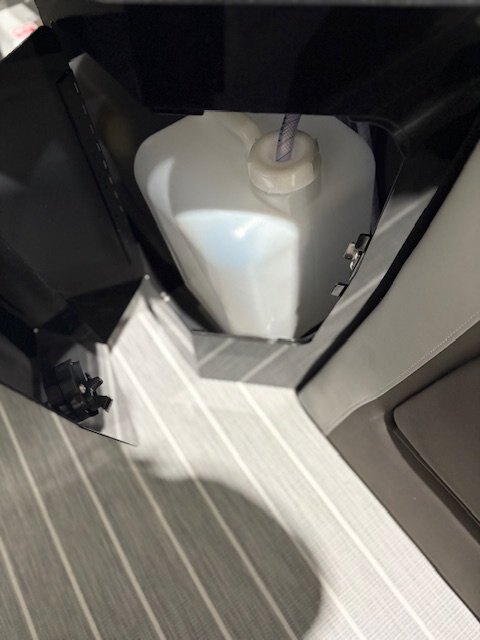

• Optional head package: holding tank + pump-out system (9.8 L / 2.6 US gal) + pop-up privacy enclosure
